Shandong Shunye Stainless Steel Co., Ltd. is one of the most reliable manufacturers and suppliers of super duplex stainless steel castings in China. We are specialized in providing high quality customized products with competitive price. Welcome to buy bulk cheap super duplex stainless steel castings made in Chin here from our factory. Contact us for quotation.
Product Introduction
Our Super Duplex Stainless Steel Castings provide exceptional strength and superior resistance to extreme corrosion. Ideal for seawater and chemical applications, these high-performance components ensure long-term reliability in the most demanding environments through advanced precision casting.
Product Overview

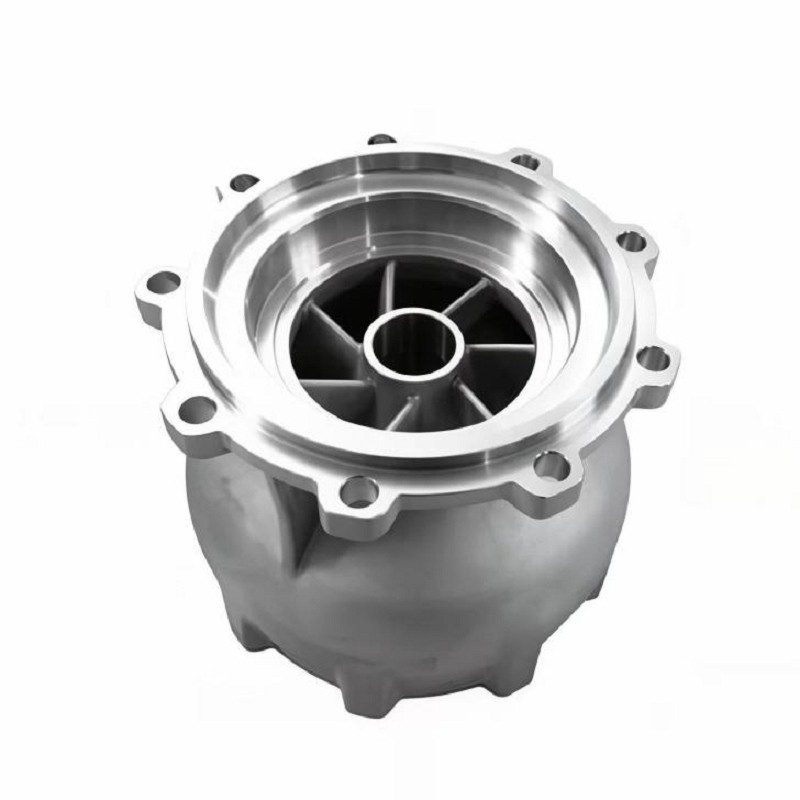

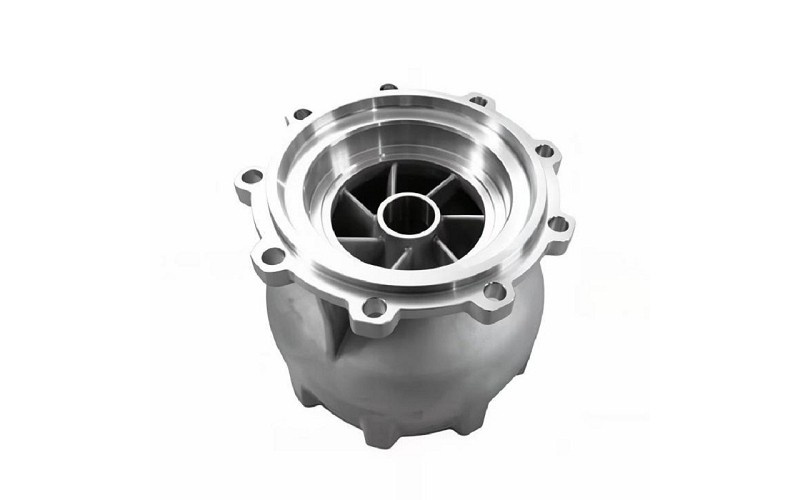

Our Super Duplex Stainless Steel Castings are high-performance industrial components specifically engineered for the most challenging environments, such as offshore oil and gas, desalination, and chemical processing. These castings are characterized by a precise microstructural balance of austenite and ferrite, providing exceptional mechanical strength and superior resistance to pitting, crevice corrosion, and chloride stress cracking. Utilizing advanced investment casting technology, we produce complex geometries with high dimensional accuracy and structural integrity. Key grades like 2507 (F53) ensure a high Pitting Resistance Equivalent Number (PREN > 40), allowing for reliable operation in highly saline or acidic media. Every component undergoes rigorous testing, including spectrochemical analysis and non-destructive testing (NDT), to meet international quality standards. We provide full OEM customization, delivering durable and cost-effective solutions that extend equipment service life and minimize maintenance in mission-critical applications.
Product Advantage Analysis
Super Duplex Stainless Steel Castings offer a decisive performance edge by combining high yield strength with exceptional corrosion resistance. Their unique dual-phase microstructure ensures a Pitting Resistance Equivalent Number (PREN) exceeding 40, making them immune to chloride stress corrosion cracking and pitting in harsh marine environments. These castings provide double the strength of conventional austenitic steels, allowing for weight reduction and thinner wall designs without sacrificing structural integrity. Furthermore, their superior wear resistance and thermal stability extend equipment lifespan in aggressive chemical media. By choosing these components, industries benefit from lower maintenance costs and maximum reliability in mission-critical, high-pressure applications.
Product Solution & Business Case
Our sales strategy for Super Duplex Stainless Steel Castings targets high-end sectors like offshore energy and desalination by emphasizing extreme-environment reliability. We offer a technical-consultative sales model, providing pre-production material grade optimization (e.g., 2507/F53) and DFM consulting to ensure parts meet the highest PREN requirements. Our competitive advantage lies in a performance-based pricing structure and a "Zero-Defect" quality commitment, backed by 100% NDT (X-ray, dye penetrant) and ISO-certified documentation. By utilizing global digital marketing and participating in specialized energy expos, we showcase our rapid prototyping capabilities and localized technical support. We aim to establish long-term strategic partnerships through a "Total Reliability Package," which includes material traceability and managed safety stock, effectively reducing the total cost of ownership and risk for our global clientele.
Procurement Key Points Analysis
|
Key Focus Areas |
Specific Requirements / Buyer Concerns |
|
PREN Value |
Pitting Resistance Equivalent Number (PREN > 40) to ensure survival in high-chloride environments. |
|
Phase Balance |
Strict 50:50 ratio of ferrite to austenite to ensure optimal mechanical and corrosion properties. |
|
Mechanical Strength |
High yield strength (typically twice that of SS316) for high-pressure and structural applications. |
|
Internal Defects |
Absence of intermetallic phases (like Sigma phase) verified by ASTM A923 testing and NDT. |
|
Heat Treatment |
Rigorous solution annealing and rapid water quenching to lock in the required microstructure. |
|
Material Traceability |
100% heat number traceability and EN 10204 3.1 or 3.2 material test certificates (MTR). |
|
Application Standards |
Compliance with specialized standards like NACE MR0175 (sour service) or NORSOK M-650. |
Product & Process Analysis
The production of Super Duplex Stainless Steel Castings (such as Grade 2507/F53) requires extremely stringent process control due to its complex dual-phase microstructure. The process begins with Advanced Investment Casting (Silica Sol), utilizing high-precision molds to achieve near-net-shape components. During the melting stage, precise spectrochemical control is mandatory to maintain the critical balance of Chromium, Nickel, Molybdenum, and Nitrogen, ensuring a Pitting Resistance Equivalent Number (PREN) above 40.
A pivotal stage is the Solution Annealing Heat Treatment, typically performed between 1050°C and 1150°C, followed by rapid water quenching. This is essential to prevent the formation of detrimental intermetallic phases, such as the brittle Sigma (σ) phase, which can compromise both toughness and corrosion resistance. Following heat treatment, multi-axis CNC machining is employed to handle the material's high work-hardening rates and achieve precise tolerances. Finally, the integrity of the casting is verified through a rigorous testing suite, including ASTM A923 Method A/C corrosion tests, ferrite-scope phase balance checks, and non-destructive testing (NDT) like Radiographic (RT) and Dye Penetrant Inspection (DPI), ensuring the component can withstand the most aggressive offshore and chemical environments.
FAQ
Q1: What makes Super Duplex stainless steel superior to standard Duplex 2205?
A: Super Duplex (e.g., Grade 2507) contains higher levels of Chromium, Molybdenum, and Nitrogen. This results in a Pitting Resistance Equivalent Number (PREN) over 40, offering significantly better protection against localized pitting and crevice corrosion in high-chloride environments compared to 2205.
Q2: How do you ensure the correct 50:50 phase balance?
A: The ferrite-to-austenite ratio is critical. We achieve this through precise chemical composition control during melting and specialized solution annealing followed by rapid water quenching. Each batch is verified using Ferritscope testing and metallographic examination.
Q3: Is there a risk of Sigma phase formation during casting?
A: Yes, Super Duplex is sensitive to brittle intermetallic phases like Sigma (σ). We eliminate this risk by strictly controlling the cooling rate post-casting and utilizing specialized heat treatment cycles to ensure maximum toughness and corrosion resistance.
Q4: Can these castings be used in sour gas (H2S) environments?
A: Absolutely. Our castings can be manufactured to comply with NACE MR0175/ISO 15156 standards, making them suitable for sour service in oil and gas applications where resistance to sulfide stress cracking is mandatory.
Q5: What testing is performed to verify material integrity?
A: In addition to standard tensile and hardness tests, we perform ASTM A923 corrosion tests, Charpy impact testing at sub-zero temperatures, and comprehensive NDT (X-ray, Ultrasonic, and Dye Penetrant) to ensure zero internal defects.
After-Sales & Technical Support Analysis
We offer specialized technical support for Super Duplex Stainless Steel Castings, focusing on material integrity in extreme environments. Our services include DFM consultations to optimize complex geometries and specialized guidance on phase balance stability. Each delivery is backed by a comprehensive quality dossier, including ASTM A923 corrosion tests and NDT reports. We provide a responsive warranty and expert troubleshooting for high-pressure or seawater applications, ensuring maximum equipment uptime and assisting global partners with material selection for mission-critical subsea and chemical projects.
