As a professional silica sol investment casting foundry with IATF 16949 certification, WUDI COUNTY SHUN YE STAINLESS STEEL PRODUCTS CO.,LTD. specializes in manufacturing high-quality stainless steel tri-clamp ferrules for food, beverage, pharmaceutical, and dairy industries. Our tri-clamp ferrules are produced using advanced silica sol investment casting process with precision machining, ensuring CT4-CT6 dimensional tolerance and Ra 3.2μm mirror polish surface finish for sanitary applications. We offer OEM/ODM customization services with competitive factory direct prices. Contact us today for a free quotation and technical consultation.
Product Introduction
WUDI COUNTY SHUN YE STAINLESS STEEL PRODUCTS CO., LTD. is a professional manufacturer of high-quality Stainless Steel Tri Clamp Ferrule 类. With over 20 years of experience in silica sol investment casting, we specialize in producing custom stainless steel castings with exceptional precision and surface finish.
Product Overview
Product Name

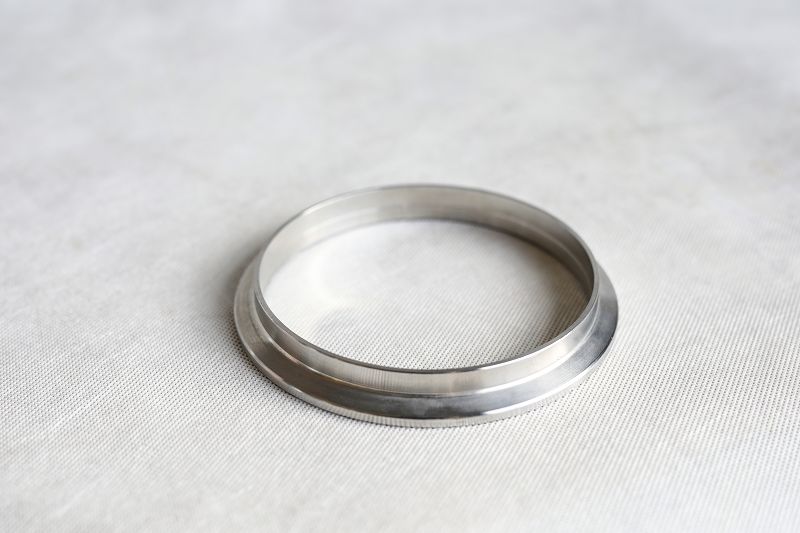

- Stainless Steel Tri Clamp Ferrule
Available Materials
- Stainless Steel 316L (SS316L for ultra-low carbon welding requirement)
- Stainless Steel 316 (SS316 / CF8M)
- Stainless Steel 304 (SS304 / CF8)
- Custom Sanitary Grade Steels
Features
- ✔Precision CNC Machining: Highly accurate sealing groove and bevel angles ensure zero-leakage joints.✔Thin-Wall Casting Capability: Elite lost wax technique achieves consistent and uniform wall thickness.✔Flawless Joint Alignment: Turned welding ends ensure seamless butt welding on standard pipes.✔High Matrix Density: Silica sol molding guarantees no internal gas pockets or pinholes under high pressure.✔Corrosion & Crack Free: Premium raw material matrix handles corrosive fluids and aggressive chemical line flushes.
Applications
- Sanitary & Hygienic Piping Systems
- Food, Dairy & Beverage Processing
- Biotech & Pharmaceutical Production Lines
- Breweries & Distilleries Processing Equipment
Production Capability
- Max Single Weight: 5kg (This circular component focuses on geometric roundness control)
- Annual Capacity: 1000 Tons
- Standard Lead Time: 45-60 Days
- CNC Lathe Processing: Fully automatic lathe centering ensures extreme concentricity and parallelism between two clamping faces
Inspection & Quality Control
- Concentricity & Parallelism Testing
- Roughness Tester (Ensuring the machined sealing face satisfies global sanitary criteria)
- CMM Precision Dimensional Inspection
- Spectrometer Core Element Analysis (100% Heat Verification for Carbon Content Control)
FAQ
- Q: Can your ferrule fittings comply with global sanitary standards like ASME BPE, DIN 32676, or ISO 2852?
- A: Yes. While we specialize in OEM casting according to custom drawings, we routinely configure our tool molds and CNC tooling parameters to meet global standards like DIN, SMS, ISO, and 3A flawlessly based on your dimensional requirements.
- Q: Why choose an investment cast ferrule over a standard bar-stock machined ferrule?
- A: For larger sizes or custom shapes, investment casting achieves near-net shapes that drastically reduce raw bar-stock material waste and shorten CNCturning time. This allows us to offer you a highly competitive price for large bulk orders.
- Q: Can you guarantee low-carbon chemistry like SS316L to prevent carbide precipitation during welding?
- A: Absolutely. We track and verify every batch utilizing our advanced OES spectrometer. We guarantee the carbon content remains below 0.03% for SS316L / 1.4404 castings, ensuring elite weld integrity and preventing intergranular corrosion.
- 10. CTA
- [Get a Free Quote] [Send Your Drawing] [Request a Sample]
Product Advantages
- High Precision Casting: Our silica sol investment casting process achieves dimensional tolerances of CT4-CT6, ensuring precise fit and assembly for your Stainless Steel Tri Clamp Ferrule 类.
- Excellent Surface Finish: We achieve surface roughness of Ra3.2-6.3, reducing machining costs and improving product appearance.
- Complex Geometry Capability: Investment casting allows for intricate shapes and internal passages that are difficult or impossible to achieve with other manufacturing methods.
- Material Versatility: We work with a wide range of stainless steels, carbon steels, and alloy steels to meet your specific application requirements.
- Cost-Effective Production: Our near-net-shape casting minimizes material waste and reduces secondary machining operations.
Applications & Solutions
Our Stainless Steel Tri Clamp Ferrule 类 are widely used in various industries including:
- Pump and valve manufacturing
- Fluid handling equipment
- Industrial machinery
- Marine and offshore applications
- Food and beverage processing
- Chemical processing
- Water treatment
Buyer Concerns Addressed
| Concern | Our Solution |
|---|---|
| Minimum Order Quantity | Flexible MOQ, starting from 100 pieces for custom castings |
| Lead Time | 30-45 days for sample production, 45-60 days for mass production |
| Quality Assurance | ISO 9001:2015 certified, 100% inspection before shipment |
| Customization | Accept custom drawings (PDF, DWG, STEP, STP) and samples |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Standard export packaging, customizable according to requirements |
Manufacturing Process & Technical Capability
Our advanced silica sol investment casting process includes the following steps:
- Wax pattern injection and assembly
- Shell building with silica sol refractory coating
- Dewaxing and sintering
- Melting and pouring
- Shell removal and cutting
- Heat treatment
- Surface finishing and machining
- Quality inspection and testing
Our facility is equipped with advanced manufacturing and testing equipment, including:
- Medium frequency induction melting furnaces
- CNC machining centers
- Coordinate Measuring Machine (CMM)
- Spectrometer for material analysis
- Hardness testers (Brinell, Rockwell)
- Ultrasonic and magnetic particle testing equipment
Company Information
Company Name: WUDI COUNTY SHUN YE STAINLESS STEEL PRODUCTS CO., LTD.
Industry: Silica Sol Investment Casting / Precision Casting
Location: Wudi County, Shandong Province, China
Experience: Over 20 years
Certifications: ISO 9001:2015, IATF 16949
Main Products: Stainless Steel Castings, Pump Parts, Valve Parts, Impellers, Marine Hardware, Glass Clamps
Website: www.shunyecasting.com
Contact: sales@wdshunye.com, +86 17754343500
Frequently Asked Questions (FAQ)
Q: What is Stainless Steel Tri Clamp Ferrule 类?
A: Stainless Steel Tri Clamp Ferrule 类 is a precision casting component manufactured using the silica sol investment casting process. It is designed for specific industrial applications requiring high precision, excellent surface finish, and corrosion resistance.
Q: What materials are available for Stainless Steel Tri Clamp Ferrule 类?
A: We offer a wide range of materials including stainless steel (304, 316, 316L), duplex stainless steel (2205, 2507), carbon steel, alloy steel, and heat-resistant alloys. Material selection depends on your specific application requirements.
Q: Can you customize Stainless Steel Tri Clamp Ferrule 类 according to my drawings?
A: Yes, we specialize in custom investment casting. We accept drawings in PDF, DWG, STEP, STP, and IGES formats. Our engineering team will review your drawings and provide professional suggestions for manufacturability and cost optimization.
Q: What is the minimum order quantity for Stainless Steel Tri Clamp Ferrule 类?
A: Our minimum order quantity typically starts from 100 pieces for custom castings. However, we can accommodate smaller quantities for prototype and sample orders, with adjusted pricing.
Q: What is the lead time for Stainless Steel Tri Clamp Ferrule 类?
A: Sample production typically takes 30-45 days, while mass production takes 45-60 days. The exact lead time depends on product complexity, quantity, and current production schedule.
Q: How do you ensure the quality of Stainless Steel Tri Clamp Ferrule 类?
A: We have a comprehensive quality control system including incoming material inspection, in-process monitoring, dimensional inspection with CMM, material analysis with spectrometer, hardness testing, and non-destructive testing (ultrasonic, magnetic particle). We are ISO 9001:2015 and IATF 16949 certified.
Q: Can you provide machining services for Stainless Steel Tri Clamp Ferrule 类?
A: Yes, we offer complete one-stop solutions from casting to machining. Our in-house CNC machining center can provide various machining operations including turning, milling, drilling, tapping, and grinding according to your specifications.
Q: What industries use Stainless Steel Tri Clamp Ferrule 类?
A: Stainless Steel Tri Clamp Ferrule 类 are used in a wide range of industries including pump and valve manufacturing, fluid handling, industrial machinery, marine and offshore, food and beverage, chemical processing, water treatment, and automotive.
After-Sales Service
- Quality Guarantee: We guarantee 100% quality inspection before shipment. If any quality issues are found, we will provide replacement or refund according to the situation.
- Technical Support: Our engineering team provides professional technical support throughout the project, from design review to production optimization.
- After-Sales Follow-up: We follow up with customers after delivery to ensure product satisfaction and address any concerns.
- Warranty: We provide a 12-month warranty from the date of shipment for all our products.
Why Choose Us
- Professional Manufacturer: Over 20 years of experience in silica sol investment casting
- One-Stop Service: From casting design to machining and surface treatment
- Strict Quality Control: ISO 9001:2015 and IATF 16949 certified, 100% inspection
- Competitive Pricing: Direct factory pricing with no middlemen
- Timely Delivery: On-time delivery rate over 95%
- Customization Expertise: Specialized in custom castings according to customer drawings
- Material Versatility: Wide range of stainless steel, carbon steel, and alloy materials
- Global Customer Base: Exporting to over 30 countries including USA, Germany, UK, Australia, Japan
Contact Us for a Quote
Ready to start your Stainless Steel Tri Clamp Ferrule 类 project? Contact us today for a free quote and professional consultation. Send your drawings (PDF, DWG, STEP, STP) to sales@wdshunye.com or call us at +86 17754343500. Our team will respond within 24 hours.
